Description

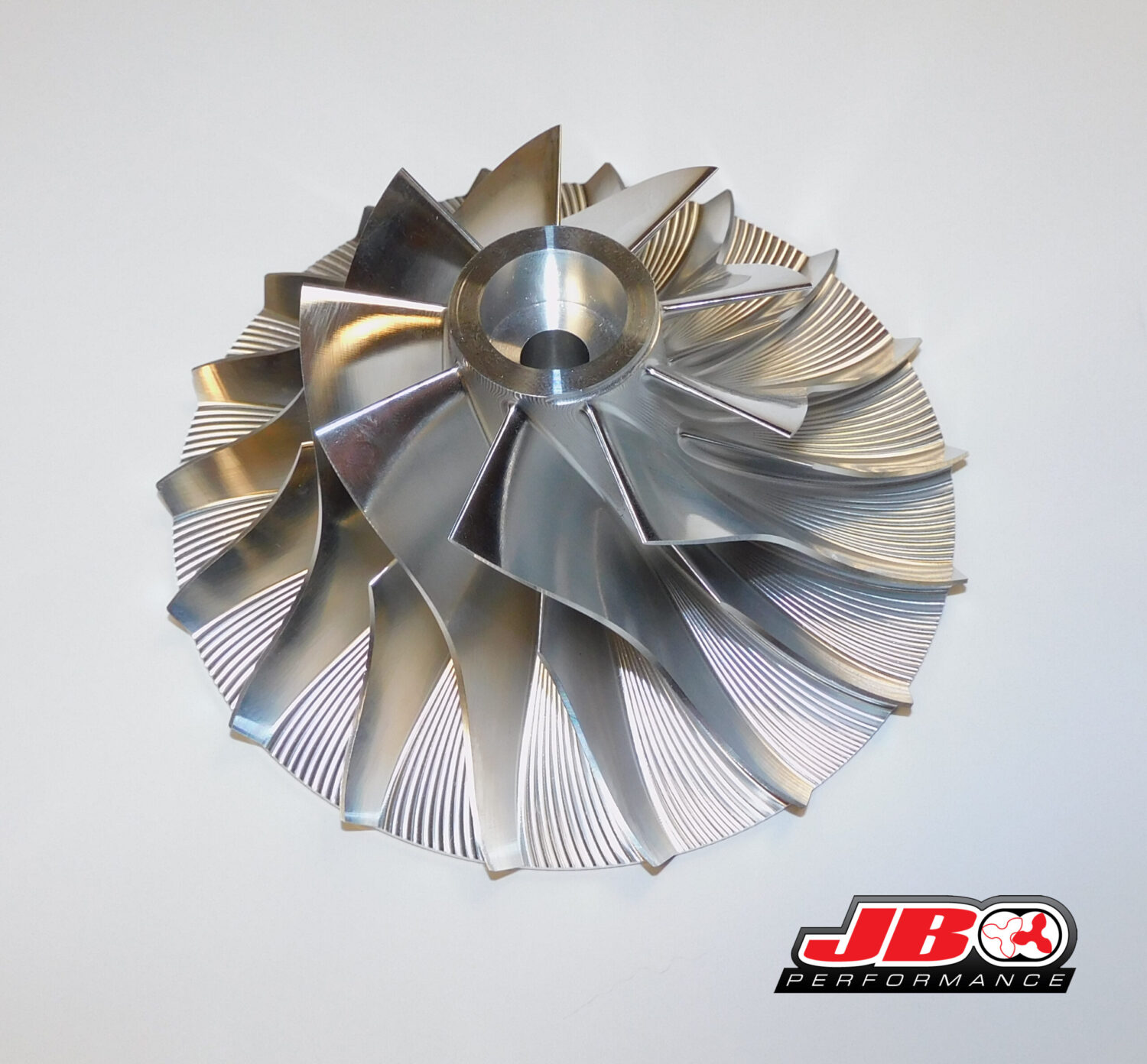

Exact fit JB Performance direct fit replacement clockwise billet F trim style impeller.  The blades must curve in a clockwise pattern.

Direct Fit for the following Vortech and TRD Scion Superchargers:

• Vortech V5 F trim.
• Vortech V9 F trim.
• TRD Scion (V5 F trim- custom case).

If you are unsure of your fitment, measure the inducer (intake) side of the impeller blade diameter. It should be right around 2.85″ or 72mm.

Comparisons:

F trim stock cast impeller:

• 750 CFM.
• 550 HP.
• 52,000 maximum RPM.
• 76% efficient.
• Balanced by grinding, clipping, sanding, drilling.
• Weight: 13.2 ounces.

JB Performance billet impeller:

• 900 CFM.
• 620 HP or better.
• 55,000 maximum RPM.
• 78% efficient or better.
• Direct fit with no machine work.
• Narrower center section.
• A2000 Alcoa Aluminum for stronger blade support.
• Thinner blade design to allow more air to pass through same pocket size.
• 10mm larger exducer diameter by using patented flared tip.
• Digitally designed and tested by a company that specializes in improved air flow designs.
• CNC balanced. by removing specific material with a cutting tool in the precise area.
• Crack checked with X-ray technology.
• Weight: 12.2 ounces.
• 3 year warranty against blade failure when installed by JB Performance with a full rebuild. requires the supercharger RPM to not be exceeded as published here.

Want to save even more? Trade in your un-damaged F trim impeller for $75 at any time.
