Description

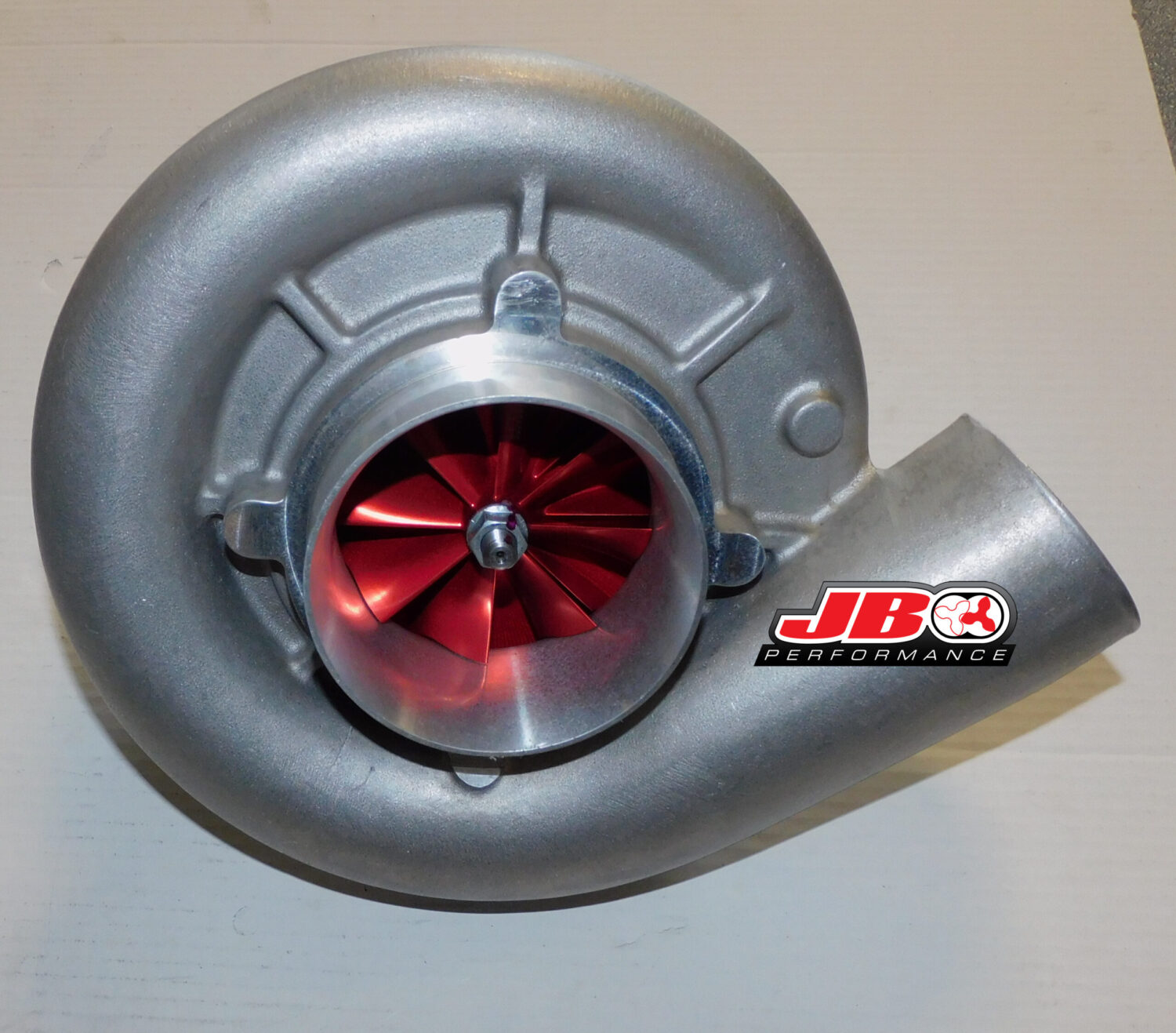

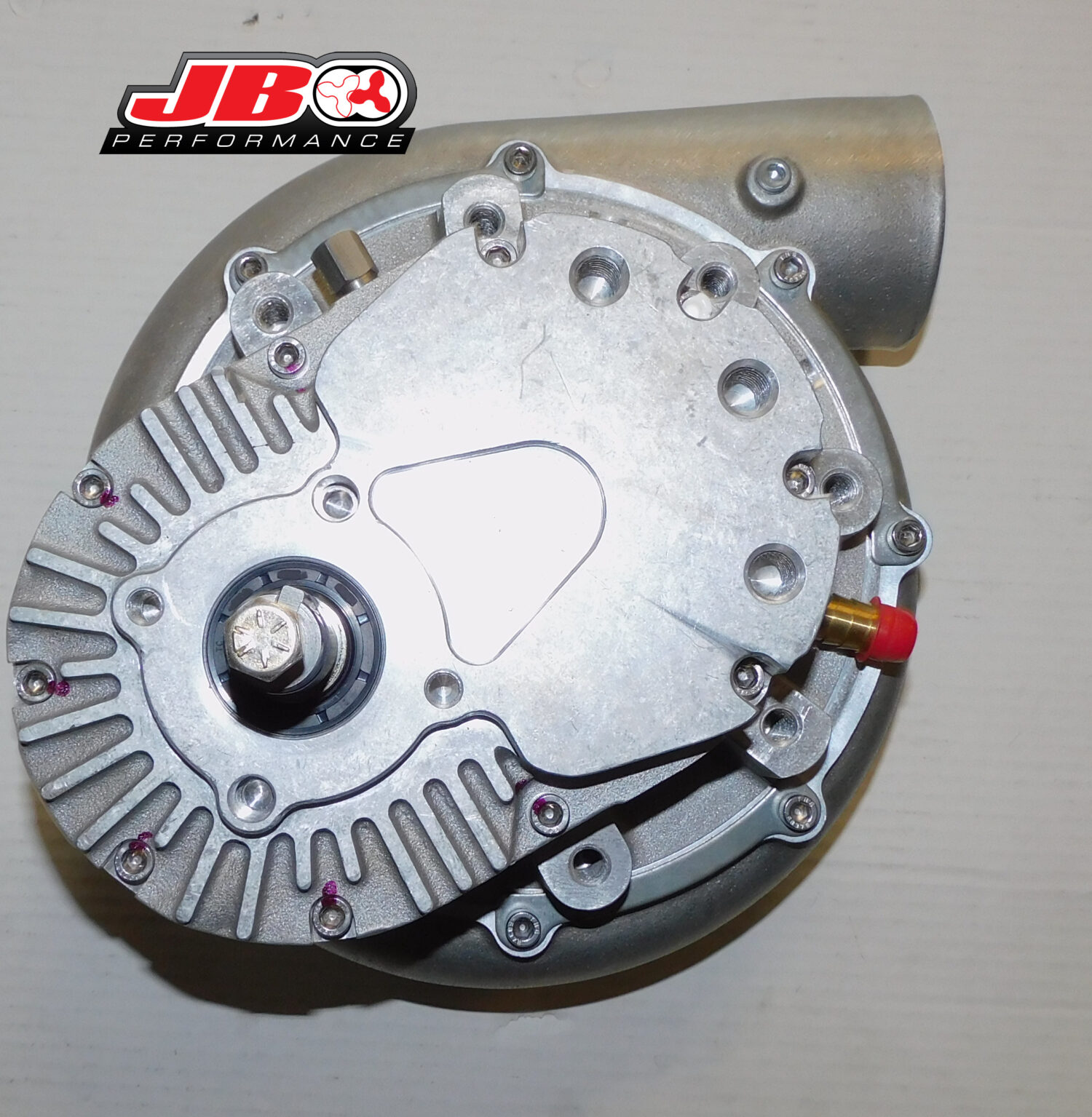

Fully rebuilt Paxton 2200 RACE Supercharger, JB Performance Billet 2200 style trim impeller, CCW, Satin, Straight Volute. Oil injected- NOT self contained.
Features the following:
- Fully rebuilt. 1 year limited warranty.
- GMN Ceramic output bearings. This unit has been converted to oil injection and has angular bearings throughout, converting it to a RACE model.
- SKF Input Bearings.
- Stainless Oil injector.
- New marine grade stainless steel bolts and new fittings.
- JB Performance Billet 2200 style trim Impeller for higher flow.
- Includes pulley bolt, key and drain fitting.
Features: Setup for CCW applications on Mustang and Corvette. May fit other models that are oil injected, CCW rotation, without ears on the front cover.
Performance Specs
-
- Estimated 1600 CFM or better.
- Estimated 1125 HP or better.
- 60,000 maximum RPM. Self contained oil supply units must maintain the factory 52,000 maximum RPM.
- 78% efficient or better.
Dimensions
- Discharge OD: 3.0″
- Inlet OD: 4.0″
- Inducer Diameter: 3.70″
- JB Performance billet impeller:
- 79% efficient.
- Direct fit with no machine work.
- Narrower center section.
- A2000 Alcoa Aluminum for stronger blade support.
- Thinner blade design to allow more air to pass through same pocket size.
- 10mm larger exducer diameter by using patented flared tip.
- Digitally designed and tested by a company that specializes in improved air flow designs.
- CNC balanced. by removing specific material with a cutting tool in the precise area.
- Crack checked with X-ray technology.
- Weight: 15.5 ounces.
- 3 year warranty against blade failure when installed by JB Performance with a full rebuild. Blade failure due to failure of the impeller bearings is not covered (lack of lubrication, exceeding published RPM, ect) Requires the supercharger RPM to not be exceeded as published here.
Note: We do not warranty against damage from plugged oil lines or excess rpm.
