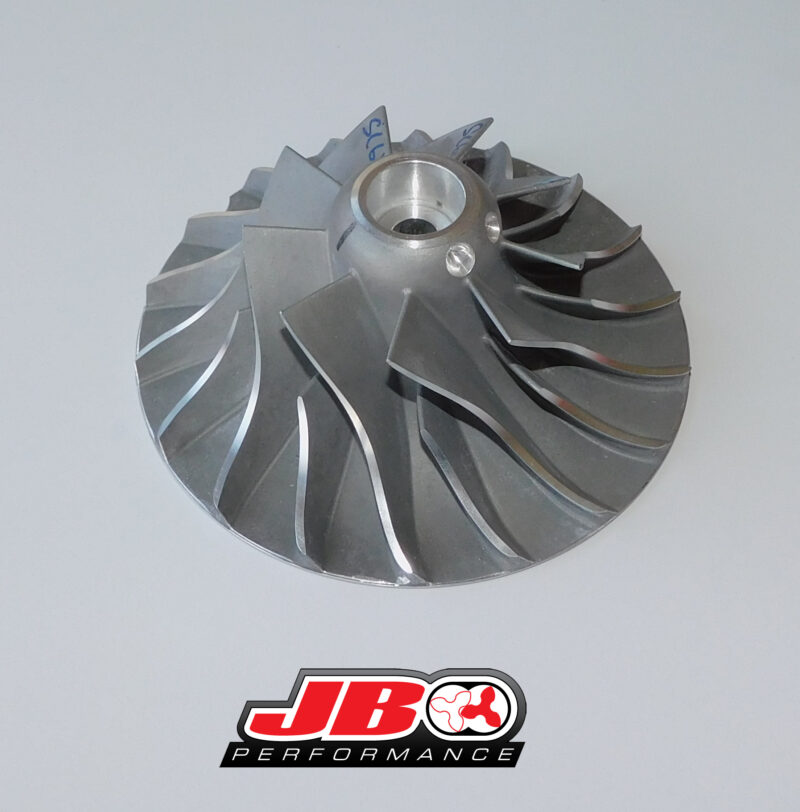

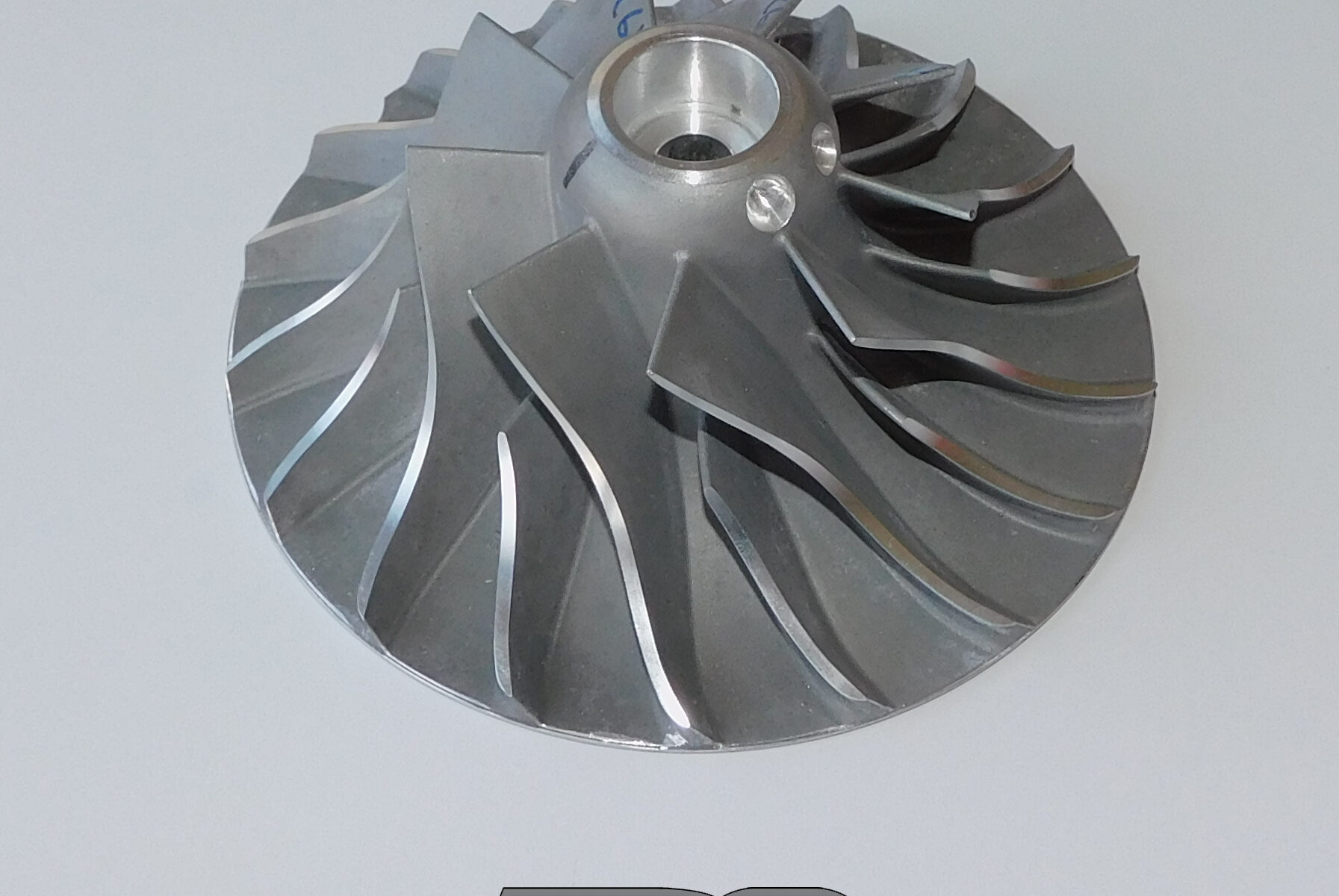

Vortech/TRD clockwise cast OEM F trim style impeller. The blades must curve in a clockwise pattern.
Direct Fit for the following Vortech and TRD Scion Superchargers:
- Vortech V5 F trim.
- Vortech V9 F trim.
- TRD Scion (V5 F trim- custom case).
If you are unsure of your fitment, measure the inducer (intake) side of the impeller blade diameter. It should be right around 2.85″ or 72mm.
F trim stock cast impeller:
- 750 CFM.
- 550 HP.
- 52,000 maximum RPM.
- 76% efficient.
- Balanced by grinding, clipping, sanding, drilling.
- Weight: 13.2 ounces.
