Many people follow belt tension recommendations that their Grandpa’s used back in the 50’s, when belts were a single v groove, maintenance was required constantly, and fancy shop tools that helped us achieve precision, were not available. Proper belt tension is critical to the life of the supercharger, belt, and the surrounding components that operate on it. Belts are not made out of the same material that was used just two decades ago. The way belts wear and fail today are much different.
Belt manufacturers use a material called EPDM. This material is much more resilient to constant flexing, can stretch under load, and has a longer lifespan. It doesn’t crack and dry out as easy as rubber does. EPDM will typically wear out the v-groove area of the belt long before they crack or split. If you know how belts work, the multi-groove v belt uses multiple v shaped grooves to provide surface area for the belt to grip the device it is driving. If the belt or the pulley become worn, they won’t grab the v-grooves properly, leading to belt slip. One of the solutions that supercharger owners typically jump to, is to tighten the belt more, when they experience slip. If you are not using the proper tools, this can lead to issues. We will cover this more later on.
Excess Tension:
Excess belt tension will overheat bearings in the supercharger, idlers, any attached mounting accessories, and in some cases, crack the front of the crankshaft. Excess belt tension can lead to early failure of bearings or components.
Low Tension:
Low belt tension can lead to slipping of the belt, which can cause early wear to a pulley, tensioner, and the drive belt. It can also cause drivability issues.
Diagnosing Belt Slip:
Poorly made pulleys.

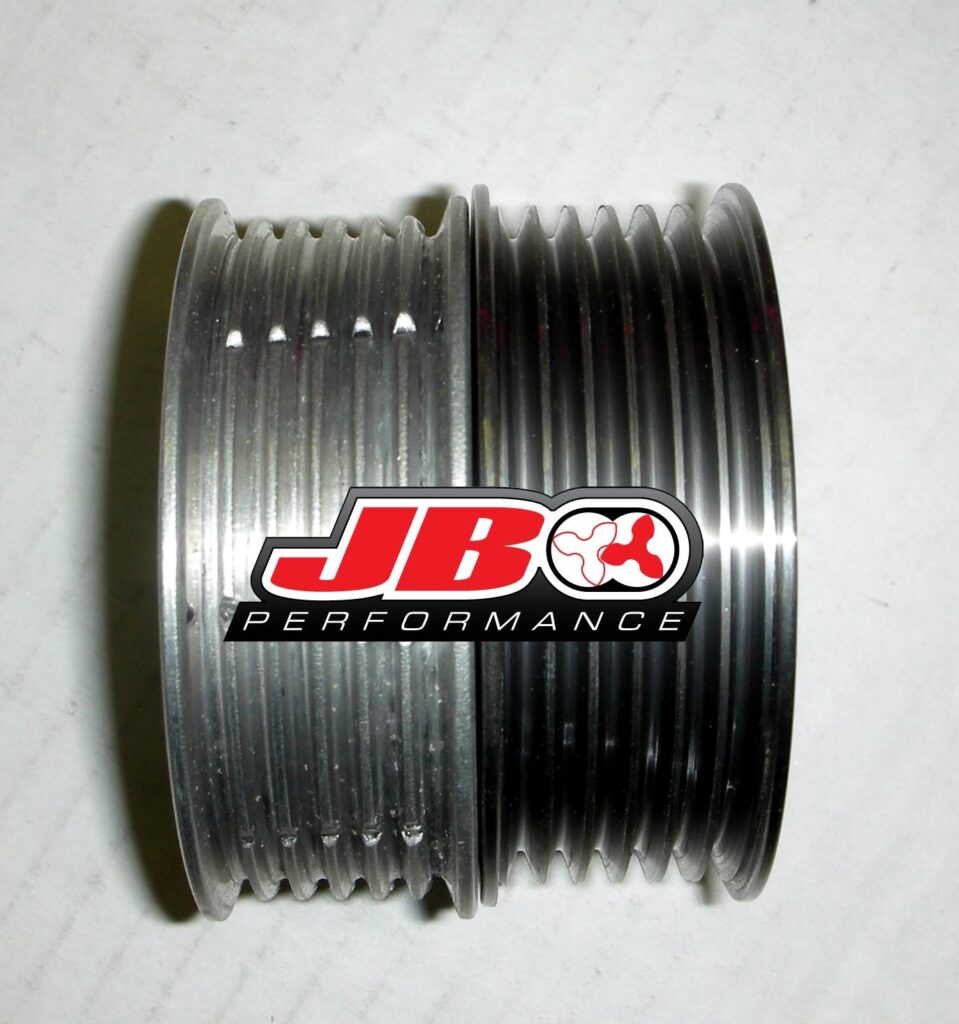

The pulley on the left has worn v grooves and also has saw cut sideways grooves. The worn v grooves will cause belt slip and premature belt wear, even if the belt is new. The saw cut sideways grooves can help the belt grip better, but also leads to early belt wear as they are abrasive to the belt during belt slip. Some belt slip will occur on any supercharger and this is normal as it is a high torque device. The pulley on the left is new, and has been made using the proper Gates recommended tooling so that the V-groove shape is proper. Be aware of some pulley builders that use the wrong tooling!
Worn belt.

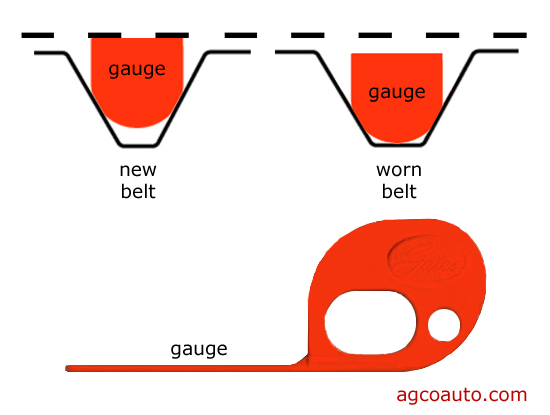

How to check for a worn belt? Use a Gates Belt Condition Tool.
You can purchase a Gates Belt Wear Gauge anywhere Gates belts are sold.

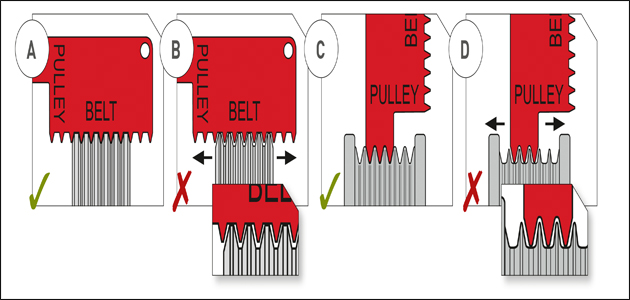

Belt Alignment:
Belt alignment can cause issues too. We will show how to check this at a later date.
How to check Belt Tension:
You need a tool to check belt tension. MAC, Snap-On and many other companies all make tension tools. We recommend using a Gates tool. You purchase this tool here: https://www.gates.com/gb/en/power-transmission/power-transmission-tools-and-merchandisers/power-transmission-tools.p.7401-000000-000003.html
If you choose to use a Gates belt tension tool, here is the link to the calculator for the proper tension. Be aware that once the belt has been tensioned once and used, it is now considered a used belt. https://www.gates.com/us/en/knowledge-center/calculators/belt-tension-calculator.html
We will have a video on how to use this, coming soon.
All of the information below is from GATES.COM. We recommend using Gates belts, when available.
EPDM belts offer long life, but do not traditionally show the signs of wear like belts from the 80’s. They typically do not show signs of cracking, splitting, or separation. If you have waited this long, the belt was worn out long ago. Same would be true if you hear the belt slipping. More often than not, belt slip is caused by wear and not belt tension.
If we can’t see it or hear it, how do we identify EPDM belt wear?
EPDM belts wear down just like a car tire. When the material disappears, the pulley ribs can sink deeper into the belt. If the groove on the pulley or belt becomes worn too wide, the belt starts to slip. How do you check for belt wear? Use a serpentine belt wear gauge to determine if your belt is worn. If it is, replace right away.
Superchargers require a high drive load. High drive loads require alot of surface area. Surface area is made up of the number of ribs making contact with the belt. Proper pulley shape helps make better contact with the belt. Think of EPDM belt wear the way you think of tire wear. After many miles of running on the road, a tire’s tread gradually wears down. Over time, belts experience a similar loss in material or rib wear. When this happens, a belt loses its ability to grip or function properly – it can slip – which puts a strain on other components within your engine, causing them to malfunction and potentially fail. Although not always the case with EPDM belts, noise is often your first and most obvious clue that your belt and other system components should be replaced.
Tech Tip #1: Belt Inspection Changes
With traditional Chloroprene (neoprene) serpentine belts, standard diagnostics called for replacement of the belt if it showed three cracks in a three inch section. However, today’s EPDM belts are much more resistant to cracking, since they can run up to 100,000 miles or beyond without visual cracks – despite the belt being worn to near failure. This resilient material quality makes EPDM belts more durable than their chloroprene counterparts, but also significantly harder to conduct a visual belt wear diagnosis.
A far better indicator EPDM belt wear is material loss on the belt ribs.

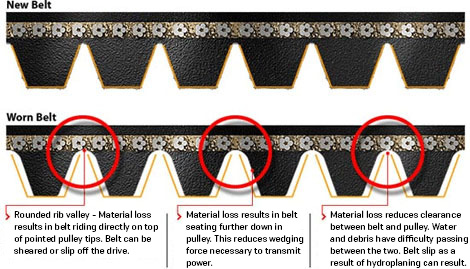

Serpentine belt drives do not work in an enclosed environment, and are frequently exposed to sand, rocks, salt, water and other engine fluids. These contaminants, along with slight misalignments, result in accelerated wear of the rubber rib surface. Once serpentine belts lose rib material, the belt is susceptible to failure modes defined by changes in the belt rib profile.
Most commonly, material loss alters the belt fit to the pulley. Serpentine belts are designed to allow clearance between the ribs and the pulley sheaves (valleys). When material loss occurs, the clearance is reduced; thus, eliminating a way for water and debris to be passed through the pulley. This can result in belt slip as a result of hydroplaning.
To summarize this wear process:
- Over time, belt ribs lose materia
- The space between the ribs increases
- The pulley sheave will eventually contact the belt valley, causing belt slip and accelerated
- Hydroplaning (like a tire on a wet road) can result
Today’s technicians need to look at the entire accessory drive system to help diagnose belt wear: from the belt/tensioner/pulley performance, to vehicle mileage, to the operation of other system components. For example, belt wear can lead to intermittent alternator performance as indicated by a persistent check engine light, inconsistent power steering performance, and/or poor A/C system performance. All are signs of belt slip caused by wear or loss of tension.
Conducting your 60k mile belt check
The informed technician needs to consider belt issues every time a serpentine system component is replaced, and every technician’s best practice is to begin checking belts and other system components at 60,000 miles. Ensure that the pulleys can free-wheel and spin, the belt doesn’t have excessive wear, and the tensioner rotates through its full range of motion. You can also instantly and easily check belt wear with Gates belt wear gauge tool .To avoid more costly component failures, replace system components at 90,000 miles, or as recommended by the vehicle manufacturer.
Tech Tip #2: Belt Performance Directly Affects Other Components
The slightest belt material loss means more for a car’s performance than you might think. As little as 5% rib material loss due to surface wear can negatively affect belt performance, and 10% belt slippage can noticeably affect the vehicle’s drivability. For example, belt slip could reduce alternator output, which is particularly impactful on very cold days when system charging and other factors may compromise performance.
The graph below shows the effect on the system when a new alternator is installed with an old belt and tensioner. The average automatic belt tensioner arm will cycle over one billion times for every 100,000 vehicle miles. By only changing one of the system components, system vibration increases dramatically. This vibration increase may not be felt or heard. Excessive arm vibration results in belt noise, accelerated bearing wear to accessory drive components, and premature system failure. Internal components in the tensioner can fail, causing stress on the belt and other accessory components. Performance of the new component can also be compromised, resulting in additional cost to re-diagnose and repair the problem.
Accessory Drive Vibration with New/Worn Parts
1. Arm vibration is minimized with a new alternator, belt, and tensioner
2. Vehicles with 90,000+ mile components are prone to increased vibration from the worn alternator, belt, and tensioner
3. When replacing an alternator without replacing the belt and tensioner, arm vibration is increased as the worn belt and tensioner do not dampen the new component effectively
Tech Tip #3: The Role of the Automatic Tensioner
The two primary roles of the automatic belt tensioner are to: 1) apply the correct amount of tension to the serpentine belt as it transfers torque from the crankshaft to the system accessories and 2) smooth out crankshaft vibration associated with the transfer of power.
A common misconception is that automatic belt tensioners last the lifetime of the vehicle, when in actuality, they contain internal components that eventually wear out. A tensioner is a relatively inexpensive part to replace and can help protect other components, such as the water pump, alternator, and A/C compressor, from undue stress and premature failure. Pulley bearing failures due to excessive heat, vibration, or improper belt tension is among the leading causes of alternator warranty returns. As the tensioner wears out, it creates an uneven amount of tension and will wear on the edges of the belt prematurely, resulting in tensioner pulley misalignment. Belt slippage and even small amounts of misalignment can cause diminished system component output or even total component failure.
Diagnosing the system tensioner
An essential best practice for a technician considering belt replacement, or any other component within the serpentine system, is a diagnostic check of the tensioner. While the engine is running with the air conditioning on, check the tensioner arm for excessive vibration. If the tensioner arm vibration can be seen with the naked eye, then the vehicle needs a new tensioner. With the engine off, also inspect the pulley surface and spin the pulley to check the bearing. Make sure there’s no resistance, as this will confirm the bearing is operating properly.
Remember, any system is only as good as its weakest link – and the tensioner is a very critical link in the accessory belt drive system. If you replace the tensioner, we recommend replacing the other system components to ensure a complete system repair. Be System Smart by being aware of the Car Care Council’s recommendation. Start inspecting the serpentine system at 60K miles, and replace system components by 90K miles, or as advised by the manufacturer.
