Bypass valve vacuum actuator 761 VA764B

Description

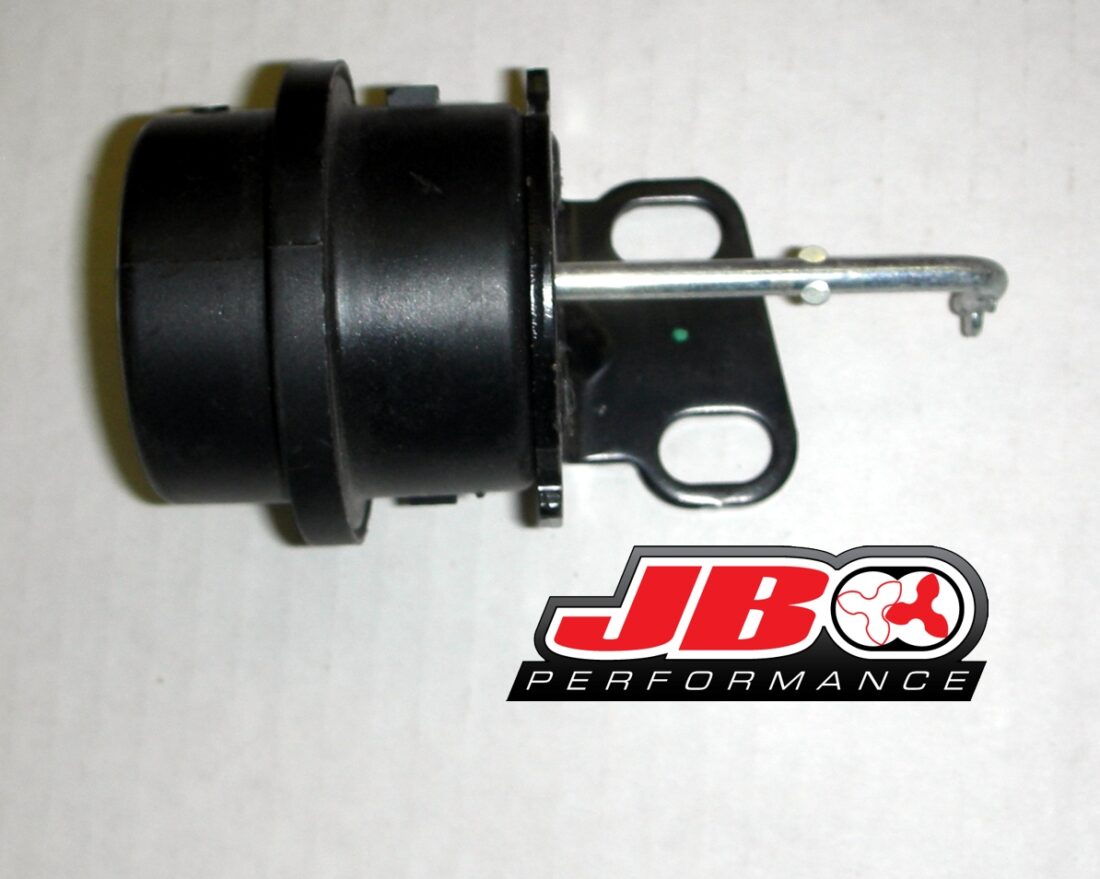

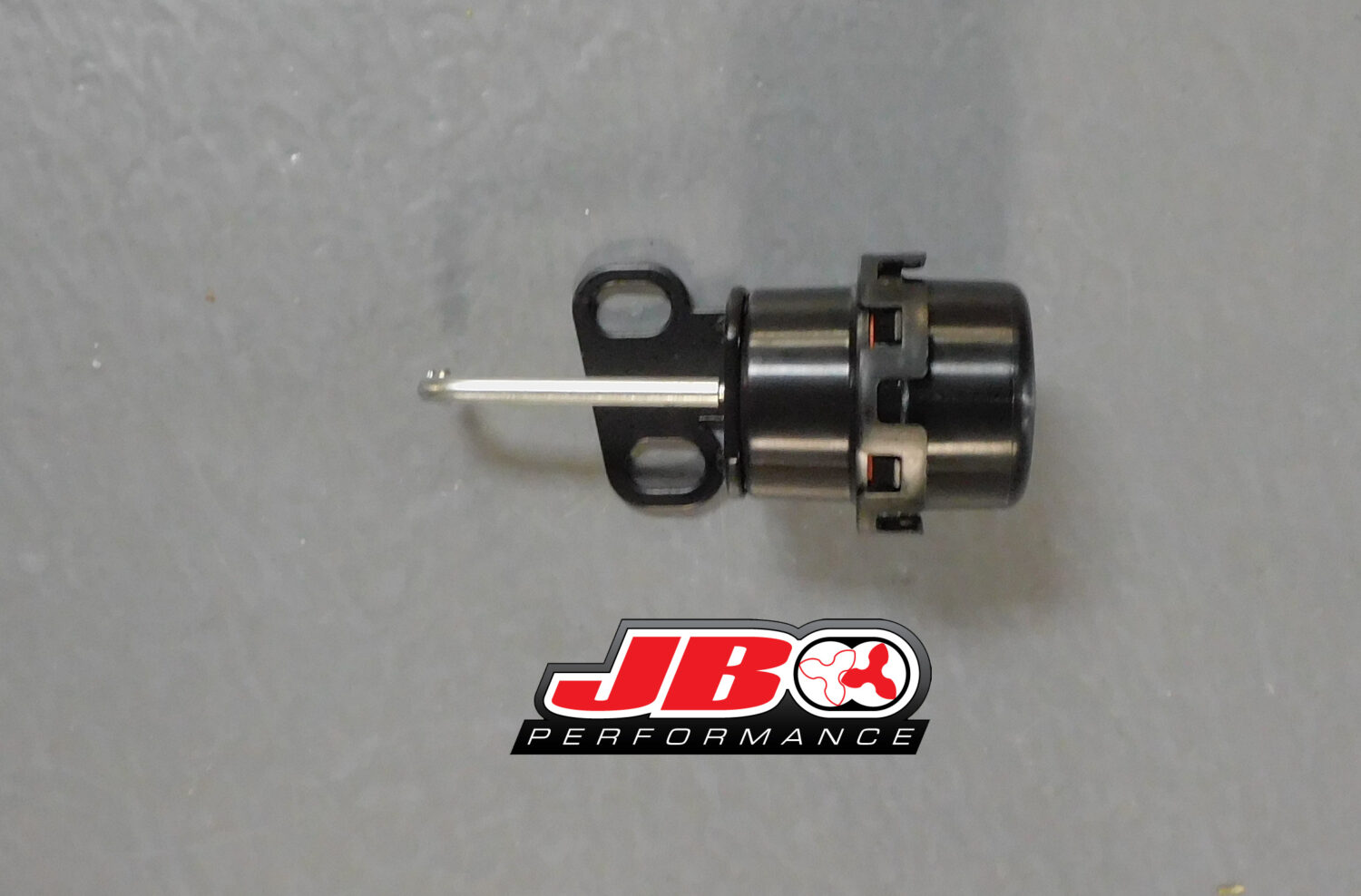

Replacement bypass valve actuator assembly (2nd picture- new style). VA764B (1st picture- old style) will have the hose barb pointed down. This is a new style bypass valve and is meant to replace the old style. This new style can orient the hose barb in almost any position. The actuator assembly is held on by physical screws instead of melted plastic pins. Pulling action and bracket bolt pattern are the same as the old style.

These items come with different shape mounting brackets and with the hose barb mounted in different clock positions. Please be sure to match the shape of the bracket and the location of the hose barb. NOTE: The hose barb on this valve is mounted on the rear side and cannot be seen in this image.

This item may contain the part number VA764B marked on the bracket.
