JB Performance replacement impeller CCW fits Paxton 2200

$501.24

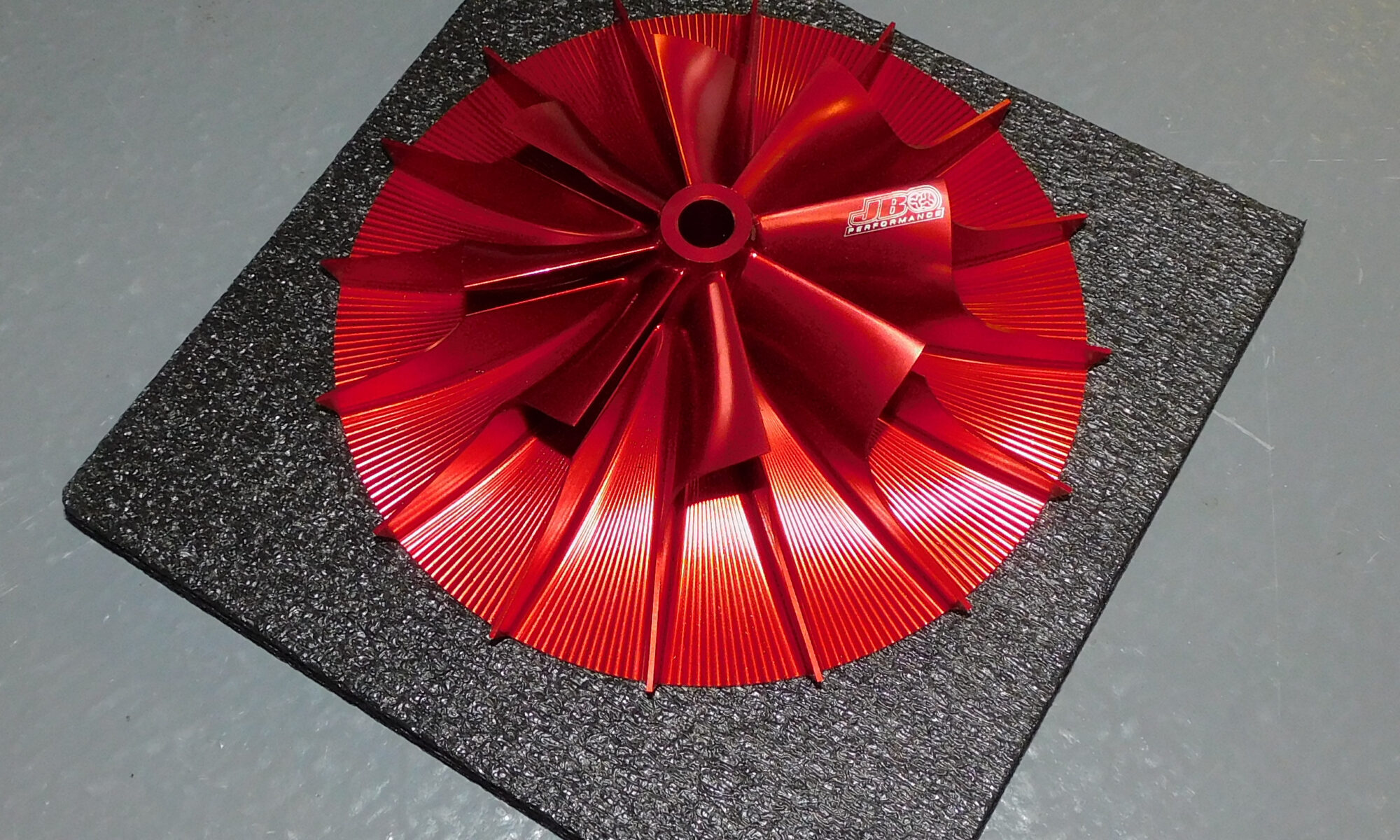

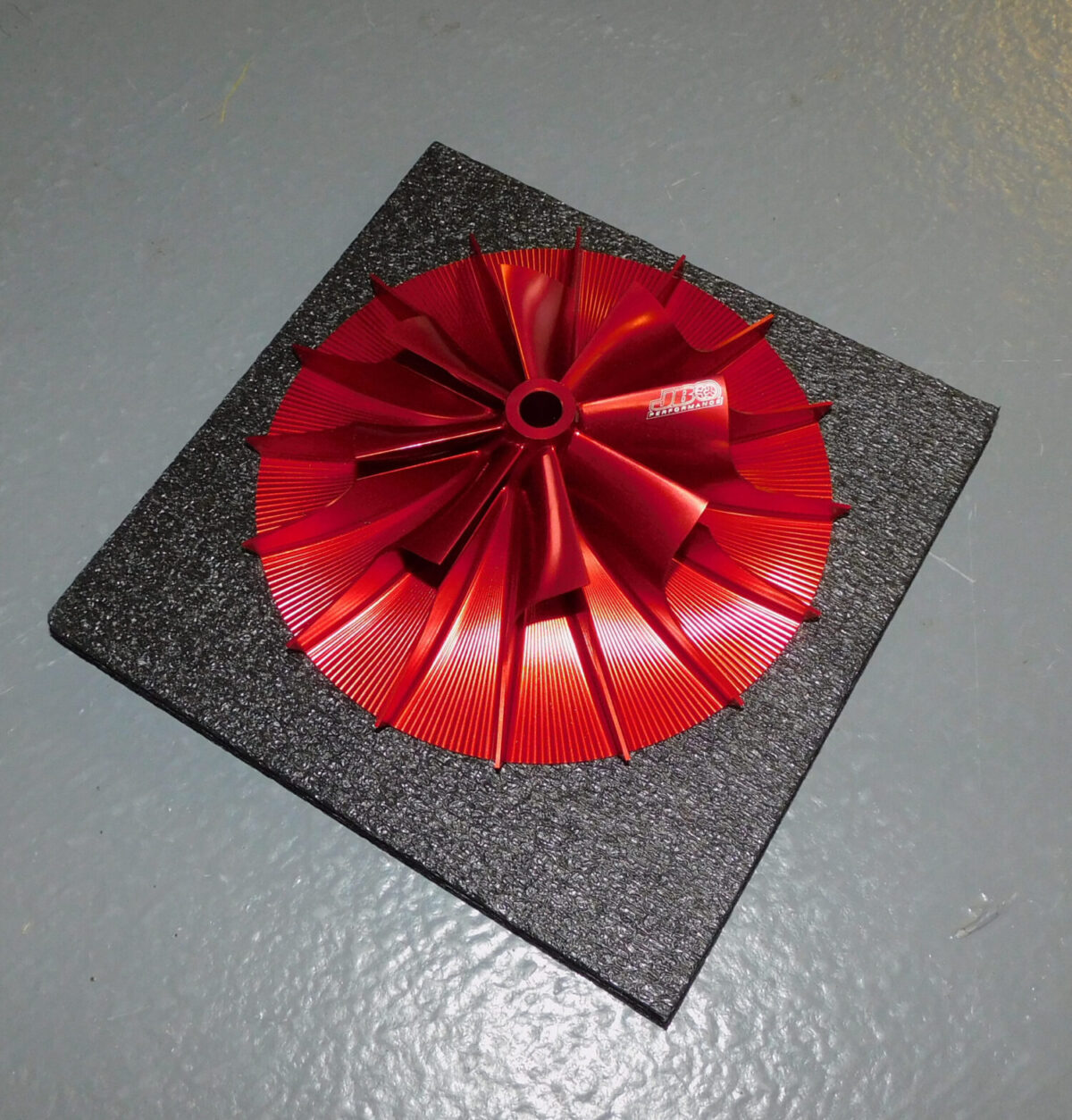

V impeller 3.475 2200 CCW

Description

Exact fit JB Performance direct fit replacement CCW billet 2200 trim style impeller.

Direct fit for the following counter clockwise rotation Paxton Superchargers and can be made to fit Vortech with the correct volute.

  • Paxton Novi 2200, 2200sl.
  • will fit V1, V2, V3 with correct volute.

If you are unsure of your fitment, measure the inducer (intake) side of the impeller blade diameter. It should be right around 3.47″ or 88mm.

Comparisons:

Novi 2200 stock cast impeller:

  • 1450 CFM.
  • 1000 HP.
  • 58,000 for Novi 2200, 52, 000 for Novi 2200sl.
  • 75% efficient.
  • Balanced by grinding, clipping, sanding, drilling.
  • Weight: 11.8 ounces.

JB Performance billet impeller:

  • Estimated 1600 CFM or better.
  • Estimated 1125 HP or better.
  • 60,000 maximum RPM. Self contained oil supply units must maintain the factory 52,000 maximum RPM.
  • 78% efficient or better.
  • Direct fit with no machine work.
  • Narrower center section.
  • A2000 Alcoa Aluminum for stronger blade support.
  • Thinner blade design to allow more air to pass through same pocket size.
  • 10mm larger exducer diameter by using patented flared tip.
  • Digitally designed and tested by a company that specializes in improved air flow designs.
  • CNC balanced. by removing specific material with a cutting tool in the precise area.
  • Crack checked with X-ray technology.
  • Weight: 11.8 ounces.
  • 3 year warranty against blade failure when installed by JB Performance with a full rebuild. requires the supercharger RPM to not be exceeded as published here.

Want to save even more? Trade in your un-damaged 2200 trim impeller for $175 at any time.

Additional information

Weight 2 lbs
Dimensions 12 × 12 × 12 in
